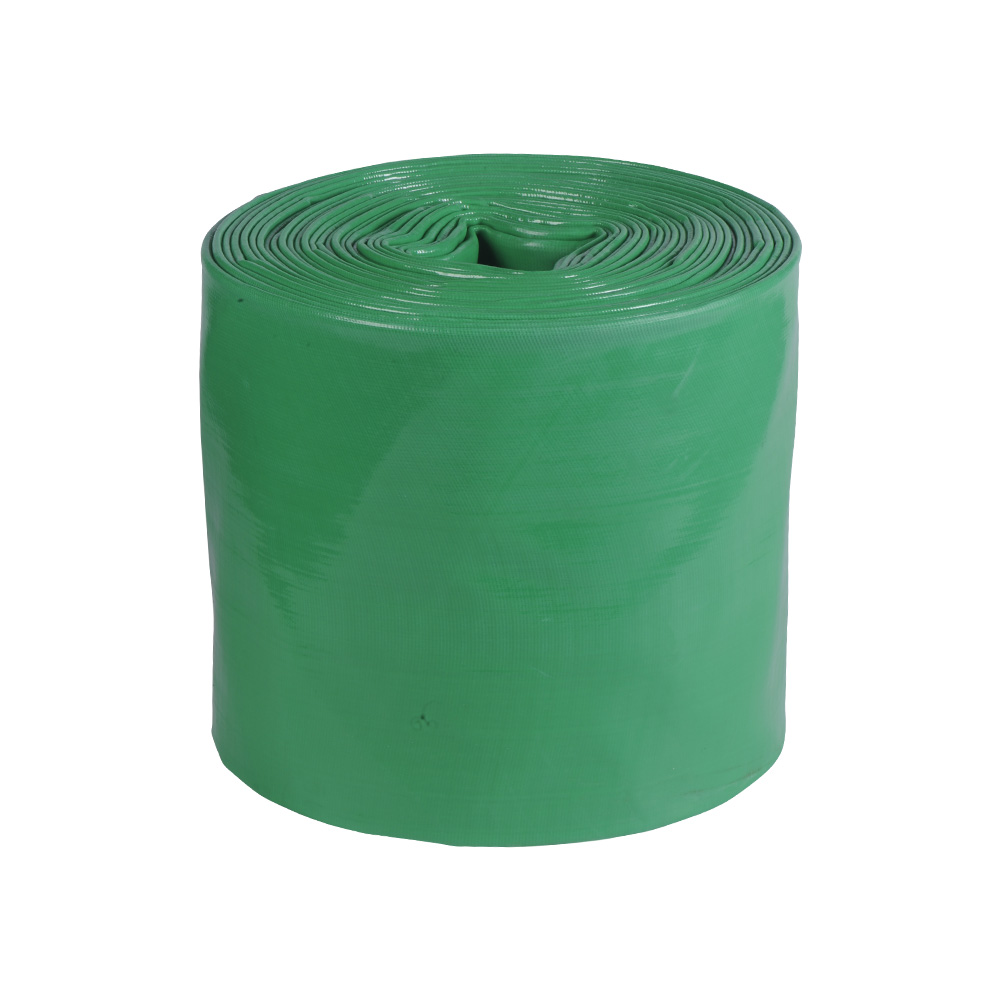

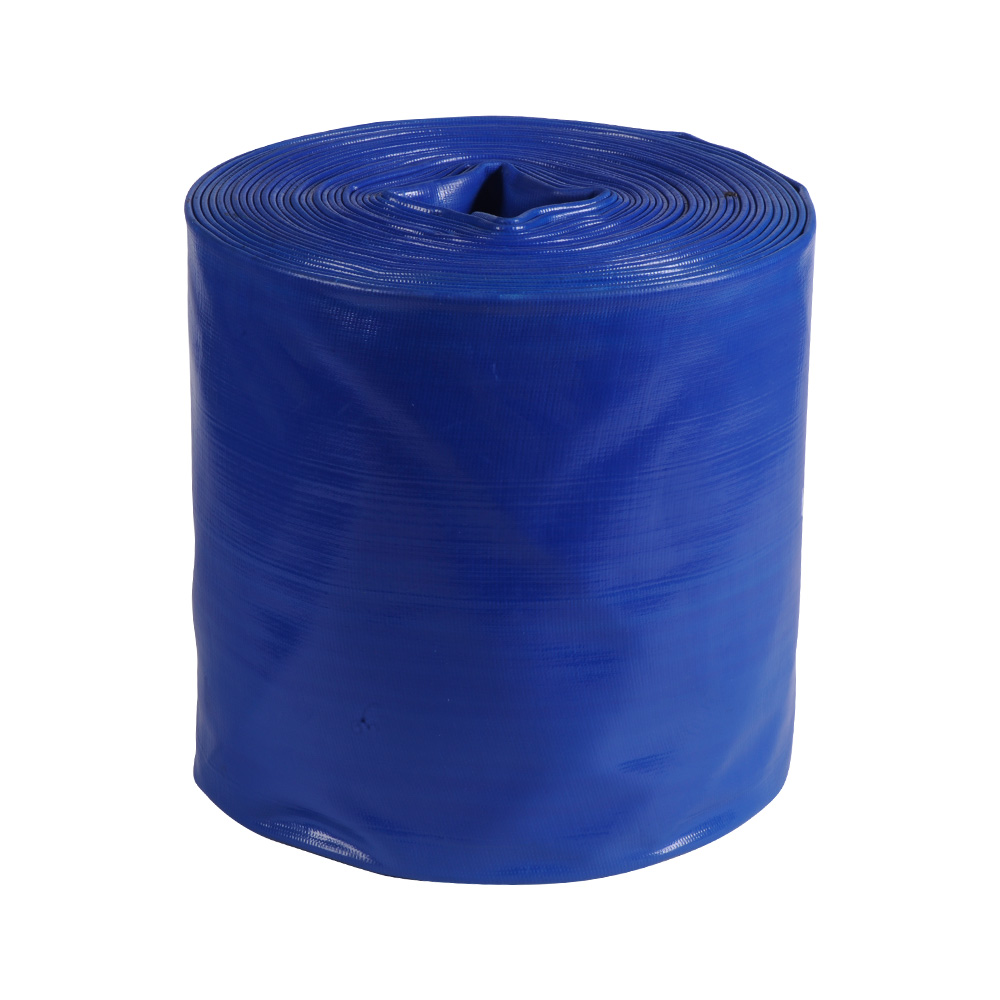

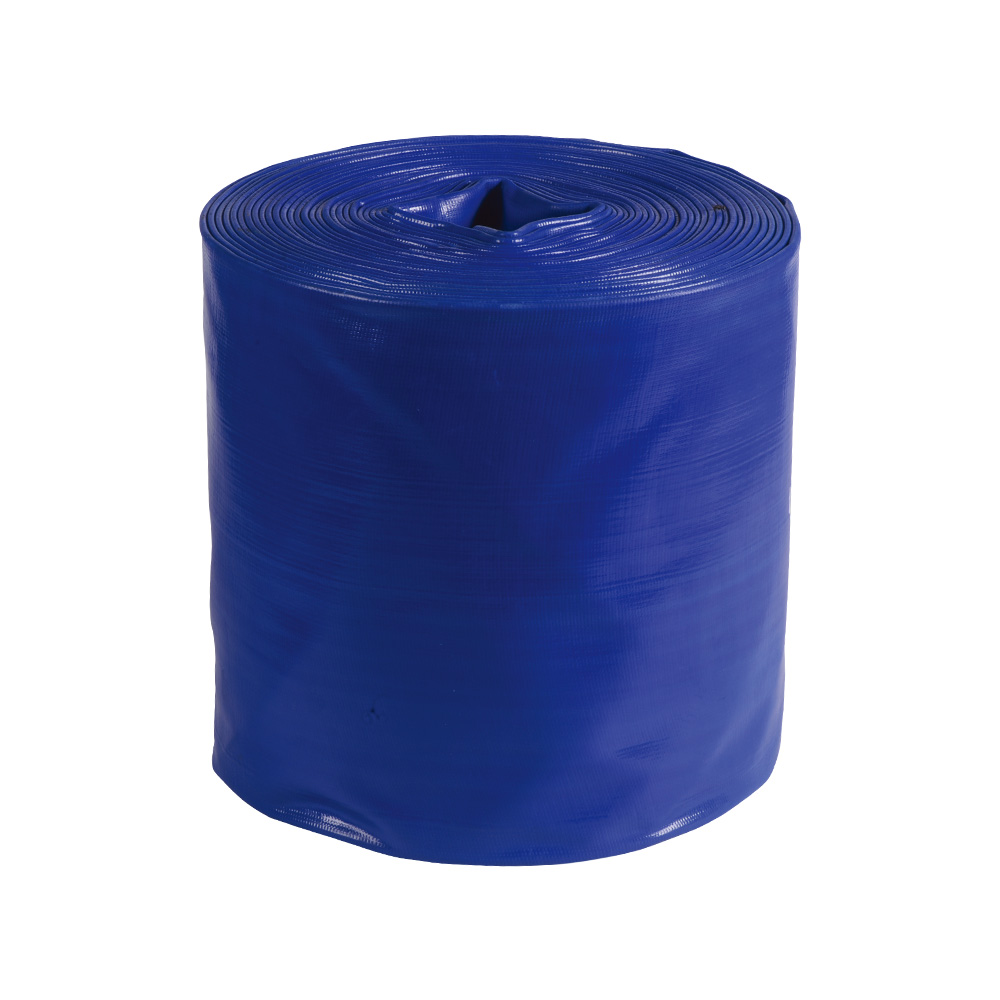

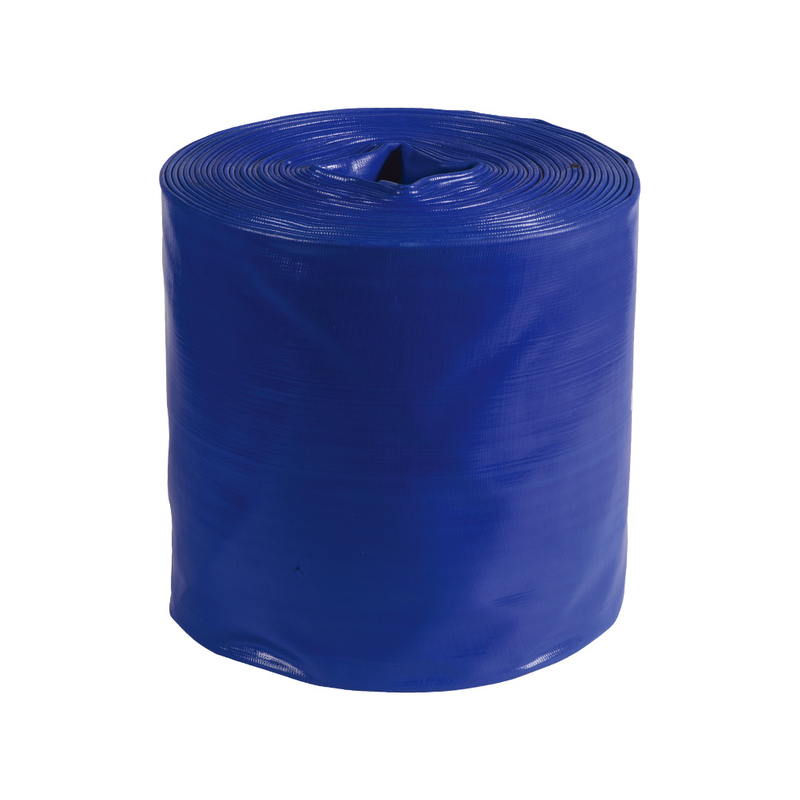

PVC layflat hose

Model NO.: BY380
Usage: Agricultural Irrigation Pipe
Feature: Adjustable and Felxible
Garton Hose Type: Water Hose
Length: 10-100m
Working Pressure: 3 Bar
Plastic Type: PVC
Place of Origine: Zhejiang, China
Size: 8 Inch
Transport Package: Cloth and Paper Packaging
Trademark: BAYU, JINZHU
Origin: Zhejiang, China
Production Capacity: 1.6 Million Meter/Month

Availability:

Quantity:



Inquire Add to Basket

Product Description

Advantage Of PVC Lay Flat Hose:

A) Non-toxic,Odorless
B) High strength terylene yarn and good-quality PVC synthesis material.
C) Light weight, good flexibility, bright color, Smooth smearing layer.
D) Easy and convenient to roll and move and no limit for its length.
E) Capable to keep its flexibility and elasticity under low-temperature water.
F) Anti-high pressure, corrosion resistance and ageing resistance.

OEM&ODM

Application Scenarios

Product Parameters

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY210	1	25	27	2	6	13	54	4.5	0.013
BY212	1.25	32	34			14.5	54	5.5	0.016
BY215	1.5	38	40			18	54	6.5	0.019
BY220	2	50	52			24	55	8.5	0.026
BY225	2.5	63	65			31	55	11	0.033
BY230	3	76	78			36	60	13	0.047
BY240	4	100	102			50	68	17	0.079
BY250	5	125	128			75	72	21	0.109
BY260	6	150	153			91	75	25	0.141
BY280	8	200	203			137	75	33	0.186

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY310	1	25	27.5	3	9	16	54	4.5	0.013
BY315	1.5	38	40.5			22	56	6.5	0.021
BY320	2	50	52.5			30	63	8.5	0.034
BY325	2.5	63	65.5			40	65	11	0.047
BY330	3	76	79			46	65	13	0.055
BY340	4	100	103			64	66	17	0.075
BY350	5	125	128			81	67	21	0.095
BY360	6	150	153			92	72	25	0.13
BY380	8	200	203			138	78	33	0.201
BY3100	10	250	253			250	85	40	0.29
BY3120	12	300	305			350	93	48	0.42

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY420	2	50	53	4	12	35	67	8.5	0.039
BY425	2.5	63	66			45	67	11	0.05
BY430	3	76	79			55	71	13	0.066
BY440	4	100	103.5			75	73	17	0.091
BY450	5	127	130.5			87	75	21	0.119
BY460	6	152	155.5			125	80	25	0.16
BY480	8	203.2	207.2			150	85	33	0.239

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY620	2	50	53	6	18	35	67	8.5	0.039
BY625	2.5	63	66			45	68	11	0.051
BY630	3	75	78			55	72	13	0.068
BY640	4	100	103.5			79	75	17	0.096
BY650	5	125	128			112	77	21	0.125
BY660	6	150	153.2			137	82	25	0.169
BY680	8	200	203.2			180	88	33	0.256

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY820	2	50	53	8	24	37.5	67	8.5	0.039
BY825	2.5	63	66			50	68	11	0.051
BY830	3	76	79			60	72	13	0.068
BY840	4	100	103.5			85	75	17	0.096

Article NO.	Size	ID	OD	Working Pressure	Bursting Pressure	Weight	PACAKING SIZE		VOLUME
BY Series	Inch	mm		BAR		KG/100M	ID(cm)	Length(cm)	m³
BY620	2	50	53	10	30	45	67	8.5	0.039
BY625	2.5	63	66			55	68	11	0.051
BY630	3	76	79			65	72	13	0.068
BY640	4	100	103.5			90	75	17	0.096

Company Profile

Taizhou Luqiao Yuxin Water Pipe Factory was founded in 1997, specialized in manufacturing,researching and developing pvc lay flat hoses, pvc lining hoses,drip irrigation tapes.

We do our best more than 26 years,our factory has been has been a leader in the hose market and grows stronger year by year.Our factory is specialized in production of“BAYU”Brand,“JINZHU”Brand PVC lay flat hose(agriculture hose,industrial hose, high pressure hose,sand suction hose,sewage pump hose),PVC lining fire hose,drip irrigation tape,ABS coupling,aluminum coupling,fire hose coupling,stainless steel hose clamp,iron hose clamp,drip hose fittings as well as all kinds of parts with big variety.

Depend on the advantage of high strength,wear resistance,pressure resistance and reliable quality and long service life,our hoses are widely applicated for agriculture, industry &garden irrigation, water drainage series,river sand pumping,drainage for building and road constructions. Our products meet the request of ROHS,PAHS,REACH and so on.Our sales network has extended from domestic to more than 30 countries such as Southeast Asia,Oceania,Central&South America,Middle East,Europe etc. We have established stable domestic and export channels.

Our staffs of sales and technical support is available to help you in selecting the right production for your application as well as to provide you with samples of our products for evaluation. we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge, high quality product offering.

Our ultimate goal is your satisfaction.

Welcome new and old customers from home and aboard to visit our factory for negotiation and cooperation.Let us make a better,mutually beneficial future together!
